Faucets Low Pressure Die Casting Machine 5.5KW CE Approval

Product Categories
Xiamen DingZhu Intelligent Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Faucets Low Pressure Die Casting Machine 5.5KW CE Approval

  • 1
  • 2
  • 3

Brand Name : DZ

Model Number : HZ-450

Certification : CE

Place of Origin : China(Mainland)

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Set/Sets per Month

Delivery Time : 2week

Packaging Details : wood

Condition : New

Warranty : 1year

name : Brass die casting machine

Technology : Gravity Die Casting Technology

Usage : Foundry Pieces Production

Raw material : Brass Copper Zinc Aluminum Steel Iron Alloy

Contact Now

How Faucets Are Made From Casting By Low Pressure Die Casting Machine

Gravity Die Casting Machine Used For The Casting Of Brass And Other Copper Alloys Poured By Gravity Into The Die

Machine features:

  • Frontal and side pouring
  • Independent dipping tanks
  • Presetting of dipping angle
  • Frontal positioning of dies forassembling and cleaning
  • Bench tilting and die closingadjustable for different die types
  • Die rotation in dipping tanks whisubmerged
  • Emergency pushbutton for dieopening
  • Safety valves on cylinder for benchtilting
  • Static limit switch no mechanicalcontact
  • Mechanical movements on conicalbearing
  • Adjustable flow rate pump
  • Led on hydraulic valves
  • Led on limit switches
  • Counter for pouring count


Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4～6Kpa
7 Side Casting Angle 0°～90°
8 Direct Casting Angle 0°～110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

Faucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE ApprovalFaucets Low Pressure Die Casting Machine 5.5KW CE Approval

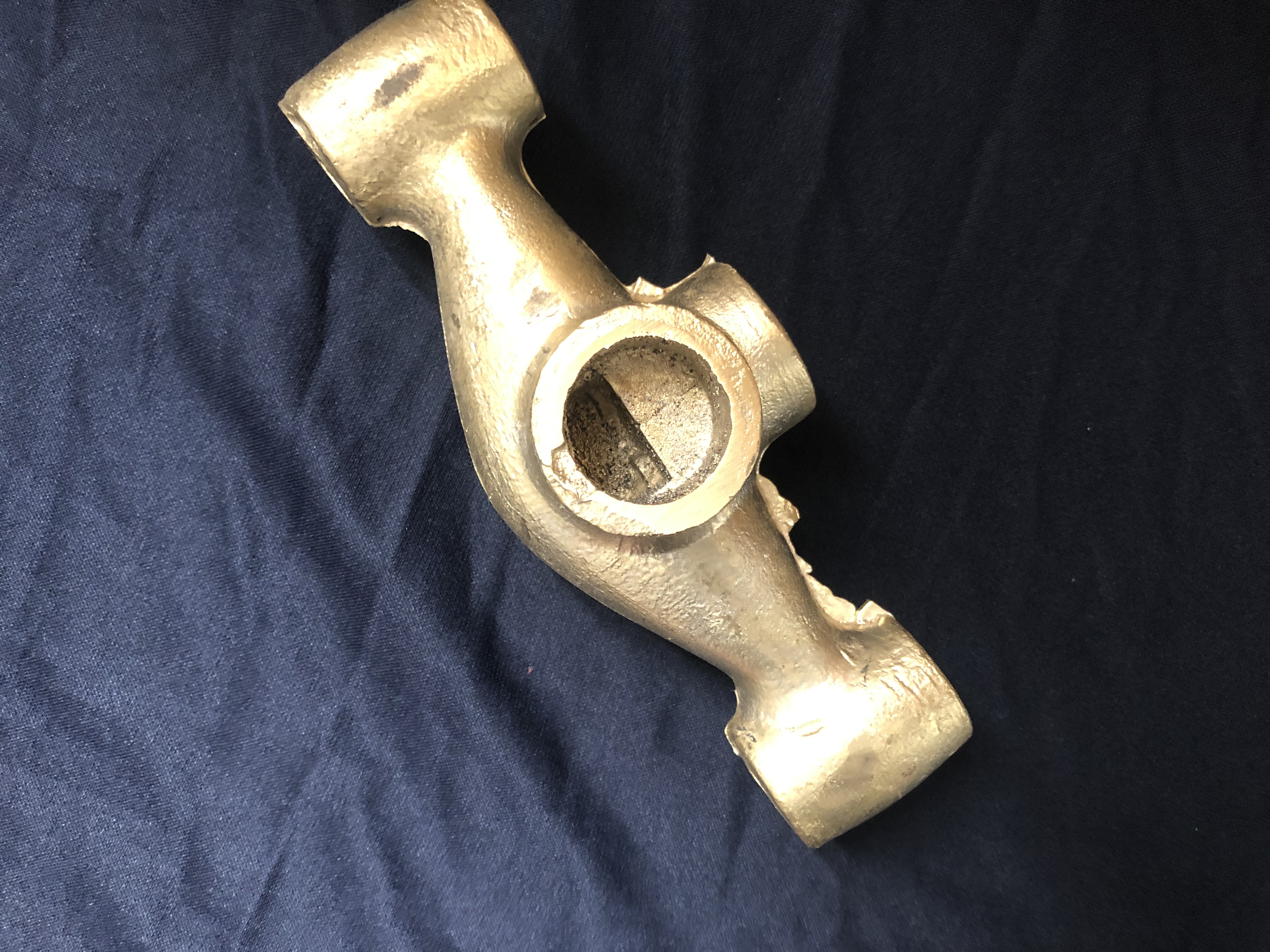

Sample pictures


Faucets Low Pressure Die Casting Machine 5.5KW CE Approval
Faucets Low Pressure Die Casting Machine 5.5KW CE Approval

Click the link to view video:
https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
