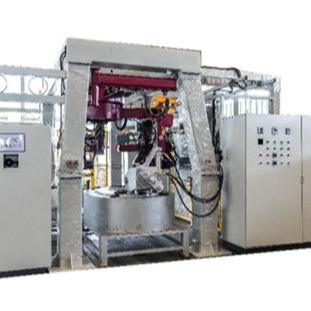

380V 180KW Low Pressure Die Casting Machine For Brass Valve Body
Low Pressure Die Casting Machines For Brass For The Casting Of Sanitary Fittings, Faucets, Water Meter Or Valve Bodies.
I. ADVANTAGES
1. Cost-efficient production
1.1. Multiple dies
1.2. Reduced melting loss
1.3. Increased yield (less circulating material)
1.4. One-man operation
1.5. Cost savings in subsequent stages of manufacture
1.6. For robot grinding low pressure die casting is a must
2. Humanization of the workstation
2.1. Ergonomic design of the workstation
2.2. Minimizing of smoke, heat, noise and danger of accidents
3. High quality castings and high-precision repeatability
3.1. Automated casting
3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube
II. CHARACTERISTIC
Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.
1) Capacity per shift (8 hours): approx. 380 castings
2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.
3) Features
A. manipulator on a linear guiding device；
B. Manually setting of the cores；
C. Max die dimensions: 550 x400 mm；
D. Quick die change flanges；
E. Simple furnace control electrics；
F. Die cooling and coating in a blackwash bath；
III. EQUIPMENT STRUCTURE
The equipment consisting of main components:
- Manipulator
- Casting device
- Induction furnace
- Unloading device
- Graphite bath
- Die cleaning device
- Crane
- Manipulators
- Hydraulic and drives system
- Pneumatic system
- Riser tube heating system
- Combination of ingot loader and scrap loader
- Control system
- Combination of ingot loader and scrap loader
- Other options are available on request
3.1 Manipulator
3.2 COMBINATION OF INGOT LOADER AND RECYCLING MATERIAL LOADER .
Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.
1) Capacity per shift (8 hours): approx. 380 castings
2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.
3) Features
A. manipulator on a linear guiding device；
B. Manually setting of the cores；
C. Max die dimensions: 550 x400 mm；
D. Quick die change flanges；
E. Simple furnace control electrics；
F. Die cooling and coating in a blackwash bath；
